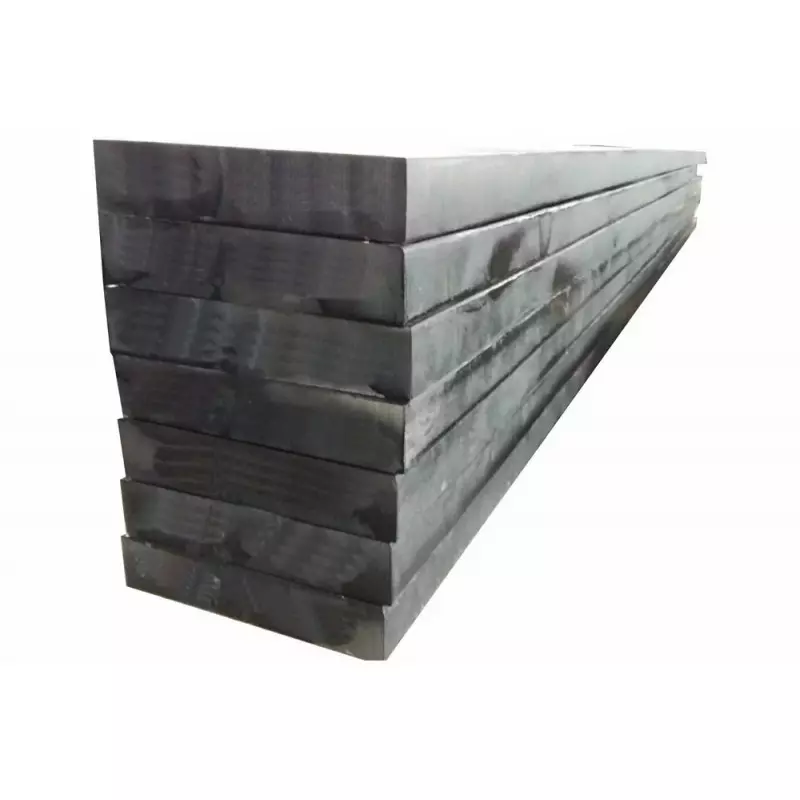

Wps Die Steel
Wps Die Steel Details
Steel performance in tools is influenced by its ability to endure lots of pressure, heat, and continual use. At our die steel plant located in Ahmedabad, we produce die steel materials designed specifically for die-making applications, as well as for cutting and shaping at industrial workshops and manufacturing plants. This type of die steel is typically selected for its high strength, wear resistance and machining stability.
WPS die steel is supplied in round bar form, or other size bars can be manufactured to meet the specific applications of the end user. Processed using controlled heat-treating processes and surface finishing, each bar has uniform hardness and internal structure throughout the entire piece. To ensure dimensional accuracy and straightness before they leave the facility, we perform inspections on all of our bars before shipping them out because it is crucial that tooling work is done accurately in both dimensions and straightness of tooling parts. Inconsistent steel will cause tooling failures and lost production. Consistency and reliability are our main focus in this process!
The selection of raw materials for tooling and engineering use comes exclusively from qualified sources, ensuring long-lasting performance and durability against deformation.
Once selected, the die steel is stored and handled carefully so as not to damage the surface finish of the raw material while in transit around Gujarat and throughout India.
Our customers are consistently satisfied with the steadiness of our die-thermal efficiency, sized accurately according to specification and maintained consistently through processing. If you require quality WPS Die Steel to support your operations, we will gladly provide you with the highest level of manufacturing control and professional service support.
Product Details:
| Material Grade | D2 |
| Shape | Flat |
| Material | CARBONN STEEL |
| Country of Origin | Made in India |
WPS Die Steel is a high-carbon, high-chromium cold work tool steel known for its excellent wear resistance, high surface hardness, and dimensional stability. It is specifically engineered for applications where resistance to abrasion and deformation is critical, such as in stamping, punching, and cold-forming operations.
This steel is typically supplied in annealed condition and can be heat treated to achieve high hardness levels. It offers a good balance of toughness and compressive strength, making it a preferred choice for long-life tooling.
Product Specifications – WPS Die Steel
| Property | Specification |
|---|---|
| Material Type | Cold Work Tool Steel (High Carbon, High Chromium) |
| Carbon (C) | 2.00 – 2.35% |
| Chromium (Cr) | 11.0 – 13.5% |
| Vanadium (V) | ~1.00% |
| Tungsten (W) | ~1.00% |
| Manganese (Mn) | ~0.60% |
| Silicon (Si) | ~0.60% |
| Nickel (Ni) | ~0.30% |
| Copper (Cu) | ~0.25% |
| Phosphorus (P) | ≤ 0.03% |
| Sulfur (S) | ≤ 0.03% |
Mechanical Properties
| Condition | Hardness (HRC) | Tensile Strength (MPa) |
|---|---|---|
| Annealed | 57 – 59 HRC (typical) | – |
| Hardened & Tempered | 55 – 62 HRC | 1,180 – 1,850 MPa |
Available Forms & Sizes
| Form | Size Range |
|---|---|
| Round Bar | 3 mm – 800 mm diameter |
| Flat Bar | 2 mm – 100 mm thickness |
| Square & Hex Bar | Custom sizes available |
| Length | 1 m to 6 m standard or cut to size |
Heat Treatment Guidelines
Hardening Temperature: 830°C – 870°C
Quenching Medium: Oil or air (as suitable)
Tempering Range: 180°C – 500°C (based on desired hardness)
Applications
Cold-work dies and punches
Blanking and forming tools
Industrial knives and shear blades
Mould inserts for plastic and rubber
Metal stamping, embossing, and extrusion tools
Key Features
Excellent wear resistance and surface hardness
High dimensional stability during heat treatment
Good compressive strength and toughness
Long tool life under repeated impact or abrasion
